For the last 10 years, I have been interested in hi-DPI monitors, and recently I read about an interesting new monitor: Dell’s 32-inch 6K monitor (U3224KBA), a productivity monitor that offers plenty of modern connectivity options like DisplayPort 2, HDMI 2 and Thunderbolt 4.

My current monitor is a Dell 32-inch 8K monitor (UP3218K), which has a brilliant picture, but a few annoying connectivity limitations and quirks — it needs two (!) DisplayPort cables on a GPU with MST support, meaning that in practice, it only works with nVidia graphics cards.

I was curious to try out the new 6K monitor to see if it would improve the following points:

• Does the 6K monitor work well with most (all?) of my PCs and laptops?
• Is 6K resolution enough, or would I miss the 8K resolution?
• Is a matte screen the better option compared to the 8K monitor’s glossy finish?
• Do the built-in peripherals work with Linux out of the box?

I read a review on heise+ (also included in their c’t magazine), but the review can’t answer these subjective questions of mine.

So I ordered one and tried it out!

Compatibility

The native resolution of this monitor is 6144x3456 pixels.

To drive that resolution at 60 Hz, about 34 Gbps of data rate is needed.

DisplayPort 1.4a only offers a data rate of 25 Gbps, so your hardware and driver need to support Display Stream Compression (DSC) to reach the full resolution at 60 Hz. I tried using DisplayPort 2.0, which supports 77 Gbps of data rate, but the only GPU I have that supports DisplayPort 2 is the Intel A380, which I could not get to work well with this monitor (see the next section).

HDMI 2.1 offers 42 Gbps of data rate, but in my setup, the link would still always use DSC.

Here are the combinations I have successfully tried:

Device	Cable	OS / Driver	Resolution
MacBook Air M1	TB 3	macOS 13.4.1	native @ 60 Hz, 8.1Gbps
GeForce RTX 4070 (DisplayPort 1.4a)	mDP-DP	Windows 11 21H2	native @ 60 Hz, 12Gbps DSC
GeForce RTX 4070	mDP-DP	Linux 6.3 nVidia 535.54.03	native @ 60 Hz, 8.1Gbps DSC
GeForce RTX 4070 (HDMI 2.1a)	HDMI	Windows 11 21H2	native @ 60 Hz, 8.1Gbps DSC
GeForce RTX 4070	HDMI	Linux 6.3 nVidia 535.54.03	native @ 60 Hz, 6Gbps 3CH DSC
GeForce RTX 3060	HDMI	Linux 6.3 nVidia 535.54.03	native @ 60 Hz, 6Gbps 3CH DSC
ThinkPad X1 Extreme	TB 4	Linux 6.3 nVidia 535.54.03	native @ 60 Hz, 8.1Gbps DSC

The MacBook Air is the only device in my test that reaches full resolution without using DSC.

Compatibility issues

Let’s talk about the combinations that did not work well.

Too old nVidia driver (< 535.54.03): not at native resolution

You need a quite recent version of the nVidia driver, as they just recently shipped support for DSC at high resolutions. I successfully used DSC with 535.54.03.

With the “older” 530.41.03, I could only select 6016x3384 at 60 Hz, which is not the native resolution of 6144x3456 at 60 Hz.

Device	Cable	OS / Driver	Resolution
GeForce RTX 4070 (DisplayPort 1.4a)	mDP-DP	Linux 6.3 nVidia 530.41.03	native @ 30 Hz only, 6016x3384@60
GeForce RTX 4070 (HDMI 2.1a)	HDMI	Linux 6.3 nVidia 530.41.03	native @ 30 Hz only, 6016x3384@60

Intel GPU: no picture or only 4K?!

I was so excited when Intel announced that they are entering the graphics card business. With all the experience and driver support for their integrated graphics, I hoped for good Linux support.

Unfortunately, the Intel A380 I bought months ago continues to disappoint.

I could not get the 6K monitor to work at any resolution higher than 4K, not even under Windows. Worse, when connecting the monitor using DisplayPort, I wouldn’t get a picture at all (in Linux)!

Device	Cable	OS / Driver	Resolution
ASRock Intel A380 (DisplayPort 2.0)	mDP-DP	Windows 11 21H2 Intel 31.0.101.4502	only 4K @ 60 Hz
ASRock Intel A380 (HDMI 2.0b)	HDMI	Windows 11 21H2 Intel 31.0.101.4502	only 4K @ 60 Hz
ASRock Intel A380 (DisplayPort 2.0)	mDP-DP	Linux 6.4	no picture in Xorg!
ASRock Intel A380 (HDMI 2.0b)	HDMI	Linux 6.4	only 4K @ 60 Hz

No picture after resume from suspend-to-RAM

I suspend my PC to RAM at least once per day, sometimes even more often.

With my current 8K monitor, I have nailed the suspend/wakeup procedure. With the help of a smart plug, I’m automatically turning the monitor off (on suspend) and on (on wakeup). After a couple of seconds of delay, I configure the correct resolution using xrandr.

I had hoped that the 6K monitor would make any sort of intricate automation superfluous.

Unfortunately, when I resumed my PC, I noticed that the monitor would not show a picture at all! I had to log in from my laptop via SSH to change the resolution with xrandr to 4K, then power the monitor off and on again, then change resolution back to the native 6K.

Scaling

Once you have a physical connection established, how do you configure your computer? With 6K at 32 inches, you’ll need to enable some kind of scaling in order to comfortably read text.

This section shows what options Linux and macOS offer.

i3 (X11)

Just like many other programs on Linux, you configure i3’s scaling by setting the Xft.dpi X resource. The default is 96 dpi, so to get 200% scaling, set Xft.dpi: 192.

Personally, I found 240% scaling more comfortable, i.e. Xft.dpi: 230.

This corresponds to a logical resolution of 2560x1440 pixels.

GNOME (Wayland)

I figured I’d also give Wayland a shot, so I ran GNOME in Fedora 38 on my ThinkPad X1 Extreme.

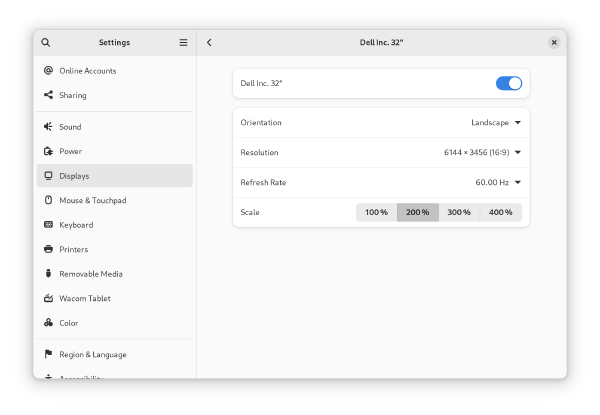

Here’s what the settings app shows in its “Displays” tab:

I tried enabling fractional scaling, but then GNOME froze until I disconnected the Dell monitor.

macOS

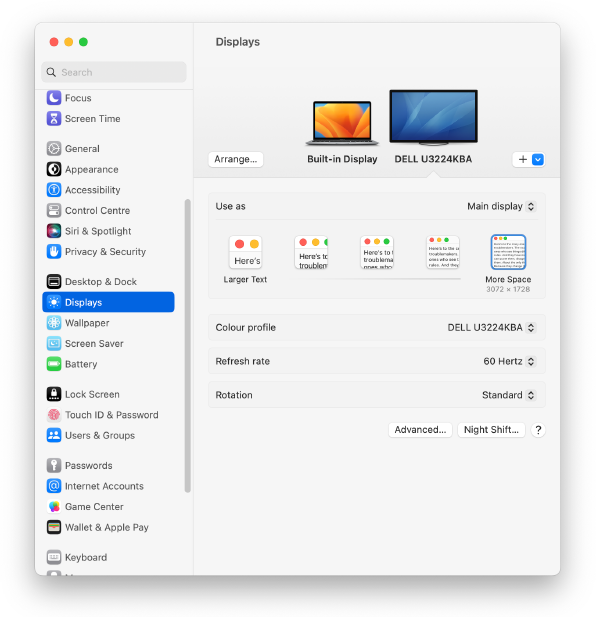

When connecting the monitor to my MacBook Air M1 (2020), it defaults to a logical resolution of 3072x1728, i.e. 200% scaling.

For comparison, with Apple’s (5K) Studio Display, the default setting is 2560x1440 (200% scaling), or 2880x1620 (“More Space”, 177% scaling).

Observations

Matte screen

I remember the uproar when Lenovo introduced ThinkPads with glossy screens. At the time, I thought I prefer matte screens, but over the years, I heard that glossy screens are getting better and better, and consumers typically prefer them for their better picture quality.

The 8K monitor I’m using has a glossy screen on which reflections are quite visible. The MacBook Air’s screen shows fewer reflections in comparison.

Dell’s 6K monitor offers me a nice opportunity to see which option I prefer.

Surprisingly, I found that I don’t like the matte screen better!

It’s hard to describe, but somehow the picture seems more “dull”, or less bright (independent of the actual brightness of the monitor), or more toned down. The colors don’t pop as much.

Philosophical question: peripherals powered on by default?

One thing that I did not anticipate beforehand is the difference in how peripherals are treated when they are built into the monitor vs. when they are plugged into a USB hub.

I like to have my peripherals off-by-default, with “on” being the exceptional state. In fact, I leave my microphone disconnected and only plug its USB cable in when I need it. I also recently realized that I want sound to only be played on headphones, so I disconnected my normal speakers in favor of my Bluetooth dongle.

The 6K monitor, on the other hand, has all of its peripherals on-by-default, and bright red LEDs light up when the speaker or microphone is muted.

This is the opposite of how I want my peripherals to behave, but of course I understand why Dell developed the monitor with on-by-default peripherals.

Conclusion

Let’s go back to the questions I started the article with and answer them one by one:

1. Does the 6K monitor work well with most (all?) of my PCs and laptops?

   → Answer: The 6K monitor works a lot better than the 8K monitor, but that’s a low bar to clear. I would still call the 6K monitor finicky. Even when you run a latest-gen GPU with latest drivers, the monitor does not reliably show a picture after a suspend/resume cycle.

2. Is 6K resolution enough, or would I miss the 8K resolution?

   → Answer: I had really hoped that 6K would turn out to be enough, but the difference to 8K is visible with the bare eye. Just like 200% scaling is a nice step up from working at 96 dpi, 300% scaling (what I use on 8K) is another noticeable step up.

3. Is a matte screen the better option compared to the 8K monitor’s glossy finish?

   → Answer: While I don’t like the reflections in Dell’s 8K monitor, the picture quality is undeniably better compared to a matte screen. The 6K monitor just doesn’t look as good, and it’s not just about the difference in text sharpness.

4. Do the built-in peripherals work with Linux out of the box?

   → Answer: Yes, as far as I can tell. The webcam works fine with the generic uvcvideo USB webcam driver, the microphone and speakers work out of the box. I have not tested the presence sensor.

So, would I recommend the monitor? Depends on what you’re using as your current monitor and as the device you want to connect!

If you’re coming from a 4K display, the 6K resolution will be a nice step up. Connecting a MacBook Air M1 or newer is a great experience. If you want to connect PCs, be sure to use a new-enough nVidia GPU with latest drivers. Even under these ideal conditions, you might run into quirks like the no picture after resume problem. If you don’t mind early adopter pains like that, and are looking for a monitor that includes peripherals, go for it!

For me, switching from my 8K monitor would be a downgrade without enough benefits.

The ideal monitor for me would be a mixture between Dell’s 8K and 6K models:

• 8K resolution
  • …but with more modern connectivity options (one cable! works out of the box!).
• without built-in peripherals like webcam, microphone and speaker
  • …but with the USB KVM switch concept (monitor input coupled to USB upstream).
• glossy finish for best picture quality
  • …but with fewer reflections.

Maybe they’ll develop an updated version of the 8K monitor at some point?
