Now that I recently upgraded my internet connection to 25 Gbit/s, I was curious how hard or easy it is to download files via HTTP and HTTPS over a 25 Gbit/s link. I don’t have another 25 Gbit/s connected machine other than my router, so I decided to build a little lab for tests like these 🧑‍🔬

Hardware and Software setup

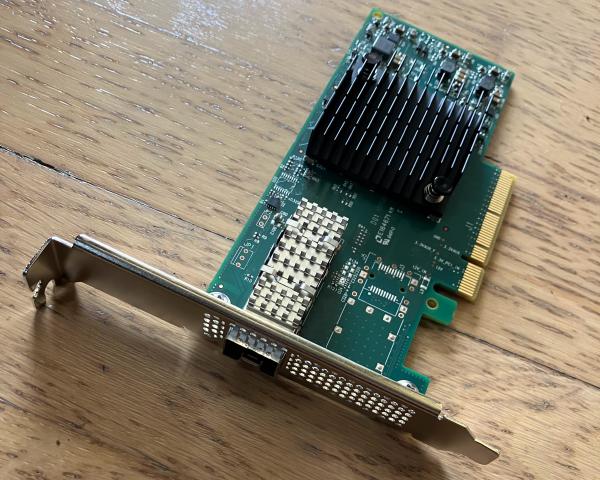

I found a Mellanox ConnectX-4 Lx for the comparatively low price of 204 CHF on digitec:

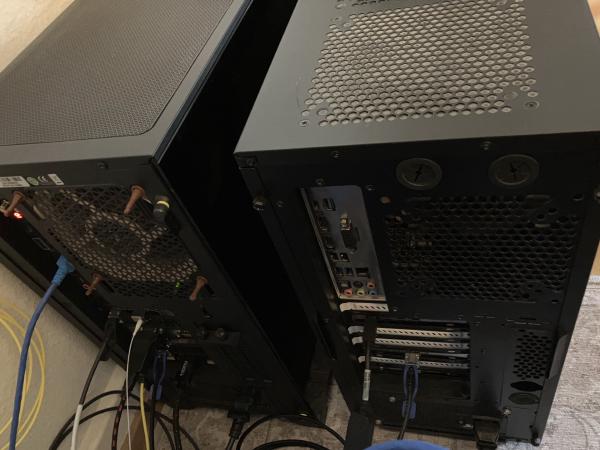

To connect it to my router, I ordered a MikroTik XS+DA0003 SFP28/SFP+ Direct Attach Cable (DAC) with it. I installed the network card into my old workstation (on the right) and connected it with the 25 Gbit/s DAC to router7 (on the left):

25 Gbit/s router (left)

Component Model
Mainboard ASRock B550 Taichi
CPU AMD Ryzen 5 5600X 6-Core Processor
Network card Intel XXV710
Linux Linux 5.17.4 (router7)
curl 7.83.0 from debian bookworm
Go net/http from Go 1.18

router7 comes with TCP BBR enabled by default.

Old workstation (right)

Component Model
Mainboard ASUS PRIME Z370-A
CPU Intel i9-9900K CPU @ 3.60GHz
Network card Mellanox ConnectX-4
Linux 5.17.5 (Arch Linux)
nginx 1.21.6
caddy 2.4.3

Test preparation

Before taking any measurements, I do one full download so that the file contents are entirely in the Linux page cache, and the measurements therefore no longer contain the speed of the disk.

big.img in the tests below refers to the 35 GB test file I’m downloading, which consists of distri-disk.img repeated 5 times.

T1: HTTP download speed (unencrypted)

T1.1: Single TCP connection

The simplest test is using just a single TCP connection, for example:

curl -v -o /dev/null http://oldmidna:8080/distri/tmp/big.img
./httpget25 http://oldmidna:8080/distri/tmp/big.img
Client Server Gbit/s
curl nginx
23.4
curl caddy
23.4
Go nginx
20
Go caddy
20.2

curl can saturate a 25 Gbit/s link without any trouble.

The Go net/http package is slower and comes in at 20 Gbit/s.

T1.2: Multiple TCP connections

Running 4 of these downloads concurrently is a reliable and easy way to saturate a 25 Gbit/s link:

for i in $(seq 0 4)
do
  curl -v -o /dev/null http://oldmidna:8080/distri/tmp/big.img &
done
Client Server Gbit/s
curl nginx
23.4
curl caddy
23.4
Go nginx
23.4
Go caddy
23.4

T2: HTTPS download speed (encrypted)

At link speeds this high, enabling TLS slashes bandwidth in half or worse.

Using 4 TCP connections allows saturating a 25 Gbit/s link.

Caddy uses more CPU to serve files compared to nginx.

T2.1: Single TCP connection

This test works the same as T1.1, but with a HTTPS URL:

curl -v -o /dev/null --insecure https://oldmidna:8443/distri/tmp/big.img
./httpget25 https://oldmidna:8443/distri/tmp/big.img
Client Server Gbit/s
curl nginx
8
curl caddy
7.5
Go nginx
12
Go caddy
7.2

T2.2: Multiple TCP connections

This test works the same as T1.2, but with a HTTPS URL:

for i in $(seq 0 4)
do
  curl -v -o /dev/null --insecure https://oldmidna:8443/distri/tmp/big.img &
done

Curiously, the Go net/http client downloading from caddy cannot saturate a 25 Gbit/s link.

Client Server Gbit/s
curl nginx
23.4
curl caddy
23.4
Go nginx
23.4
Go caddy
21.6

T3: HTTPS with Kernel TLS (KTLS)

Linux 4.13 got support for Kernel TLS back in 2017.

nginx 1.21.4 introduced support for Kernel TLS, and they have a blog post on how to configure it.

In terms of download speeds, there is no difference with or without KTLS. But, enabling KTLS noticeably reduces CPU usage, from ≈10% to a steady 2%.

For even newer network cards such as the Mellanox ConnectX-6, the kernel can even offload TLS onto the network card!

T3.1: Single TCP connection

Client Server Gbit/s
curl nginx
8
Go nginx
12

T3.2: Multiple TCP connections

Client Server Gbit/s
curl nginx
23.4
Go nginx
23.4

Conclusions

When downloading from nginx with 1 TCP connection, with TLS encryption enabled (HTTPS), the Go net/http client is faster than curl!

Caddy is slightly slower than nginx, which manifests itself in slower speeds with curl and even slower speeds with Go’s net/http.

To max out 25 Gbit/s, even when using TLS encryption, just use 3 or more connections in parallel. This helps with HTTP and HTTPS, with any combination of client and server.

Appendix

Go net/http test program httpget25.go
package main

import (
	"crypto/tls"
	"flag"
	"fmt"
	"io"
	"io/ioutil"
	"log"
	"net/http"
)

func httpget25() error {
	http.DefaultTransport.(*http.Transport).TLSClientConfig = &tls.Config{InsecureSkipVerify: true}

	for _, arg := range flag.Args() {
		resp, err := http.Get(arg)
		if err != nil {
			return err
		}
		if resp.StatusCode != http.StatusOK {
			return fmt.Errorf("unexpected HTTP status code: want %v, got %v", http.StatusOK, resp.Status)
		}
		io.Copy(ioutil.Discard, resp.Body)
	}
	return nil
}

func main() {
	flag.Parse()
	if err := httpget25(); err != nil {
		log.Fatal(err)
	}
}
Caddy config file Caddyfile
{
  local_certs
  http_port 8080
  https_port 8443
}

http://oldmidna:8080 {
  file_server browse
}

https://oldmidna:8443 {
  file_server browse
}
nginx installation instructions
mkdir -p ~/lab25
cd ~/lab25

wget https://nginx.org/download/nginx-1.21.6.tar.gz
tar tf nginx-1.21.6.tar.gz

wget https://www.openssl.org/source/openssl-3.0.3.tar.gz
tar xf openssl-3.0.3.tar.gz

cd nginx-1.21.6
./configure --with-http_ssl_module --with-http_v2_module --with-openssl=$HOME/lab25/openssl-3.0.3 --with-openssl-opt=enable-ktls
make -j8
cd objs
./nginx -c nginx.conf -p $HOME/lab25
nginx config file nginx.conf
worker_processes  auto;

pid        logs/nginx.pid;

daemon off;

events {
    worker_connections  1024;
}

http {
    include       mime.types;
    default_type  application/octet-stream;

    access_log /home/michael/lab25/logs/access.log  combined;

    sendfile        on;
    sendfile_max_chunk 2m;

    keepalive_timeout  65;

    server {
        listen       8080;
        listen [::]:8080;
        server_name  localhost;

        root /srv/repo.distr1.org/;

        location / {
            index index.html index.htm;
        }

        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root /usr/share/nginx/html;
        }

        location /distri {
            autoindex on;
        }
    }

    server {
        listen 8443 ssl;
        listen [::]:8443 ssl;
        server_name localhost;

        ssl_certificate nginx-ecc-p256.pem;
        ssl_certificate_key nginx-ecc-p256.key;

        #ssl_conf_command Options KTLS;

        ssl_buffer_size 32768;
        ssl_protocols TLSv1.3;

        root /srv/repo.distr1.org/;

        location / {
            index index.html index.htm;
        }

        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root /usr/share/nginx/html;
        }

        location /distri {
            autoindex on;
        }
    }
}
