Laptop review: ThinkPad X1 Extreme (Gen 2) (2021)

published 2021-06-05, last modified 2023-10-25
in tag pc
Edit Icon
Table of contents

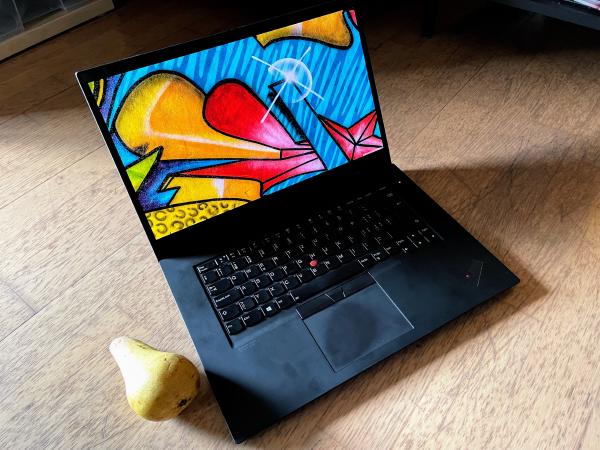

ThinkPad X1 Extreme Gen 2, pear for scale

For many of my school and university years, I used and liked my ThinkPad X200 ultraportable laptop. But now that these years are long gone, I realized my use-case for laptops had changed: instead of carrying my laptop with me every day, I am now only bringing it on occasion, for example when I travel to conferences, visit friends, or do volunteer work.

After the ThinkPad X200, I used a few different laptops:

  • MacBook Pro 13" Retina, bought for its screen
  • ThinkPad X1 Carbon, which newly introduced a hi-dpi screen to ThinkPads
  • Dell XPS 9360, for a change, to try a device that ships with Linux

With each of these devices, I have felt limited by the lack of connectors and slim compute power that comes with the Ultrabook brand, even after years of technical progress.

More compute power is nice to be able to work on projects with larger data sets, for example debiman (scanning and converting all manpages in Debian), or distri (building Linux packages).

More peripheral options such as USB ports are nice when connecting a keyboard, trackball, USB-to-serial adapter, etc., to work on a micro controller or Raspberry Pi project, for example.

So, I was ready to switch from the heaviest Ultrabooks to the lightest of the “mobile workstation” category, when I stumbled upon Lenovo’s ThinkPad X1 Extreme (Gen 2), and it piqued my curiosity.

Peripherals

Let me start by going into the key peripherals of a laptop: keyboard, touchpad and screen. I will talk about these independently from the remaining hardware because they define the experience of using the computer.

Keyboard

After having used the Dell XPS 9360 for a few years, I can confidently say that the keyboard of the ThinkPads is definitely much better, and in a noticeable way.

It’s not that the Dell keyboards are bad. But comparing the Dell and ThinkPad side-by-side makes it really clear that the ThinkPad keyboards are the best notebook keyboards.

On the ThinkPad keyboard, every key press lands exactly as I imagine. Never do I need to hit a key twice because I didn’t press it just-right, and never do I notice additional ghost key presses.

Even though I connect my external Kinesis Advantage keyboard when doing longer stretches of work, the quality of the built-in keyboard matters: a good keyboard enables using the laptop on the couch.

Touchpad

Unfortunately, while the keyboard is great, I can’t say the same about the touchpad. I mean, it’s not terrible, but it’s also not good by any stretch.

This seems to be the status quo with PC touchpads for decades. It really blows my mind that Apple’s touchpads are consistently so much better!

My only hope is that Bill Harding (GitClear), who is working on improving the Linux touchpad experience, will eventually find a magic software tweak or something…

As mentioned on the ArchWiki, I also had to adjust the sensitivity like so:

% xinput set-prop 'SynPS/2 Synaptics TouchPad' 'libinput Accel Speed' 0.5

Display

I have high demands regarding displays: since 2013, every device of mine has a hi-dpi display.

The industry hasn’t improved displays across the board as fast as I’d like, so non-hi-dpi displays are still quite common. The silver lining is that it makes laptop selection a little easier for me: anything without a decent display I can discard right away.

I’m glad to report that the 4K display in the ThinkPad X1 Extreme with its 3840x2160 pixels is sharp, bright, and generally has good viewing angles.

It’s also a touchscreen, which I don’t strictly need, but it’s nice to use it from time to time.

I use the display in 200% scaling mode, i.e. I set Xft.dpi: 192. See also HiDPI in ArchWiki.

Hardware

Spec-wise, the ThinkPad X1 Extreme is a beast!

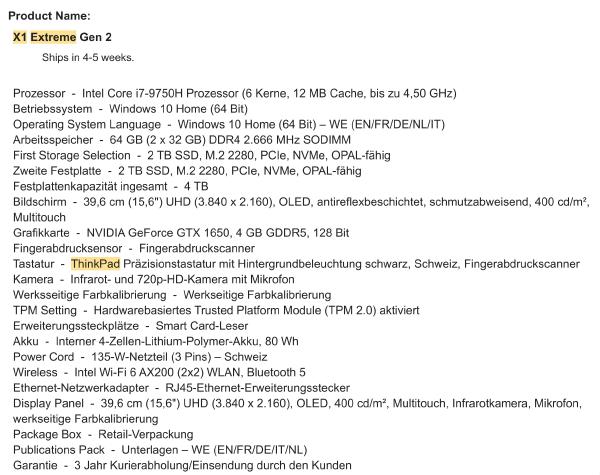

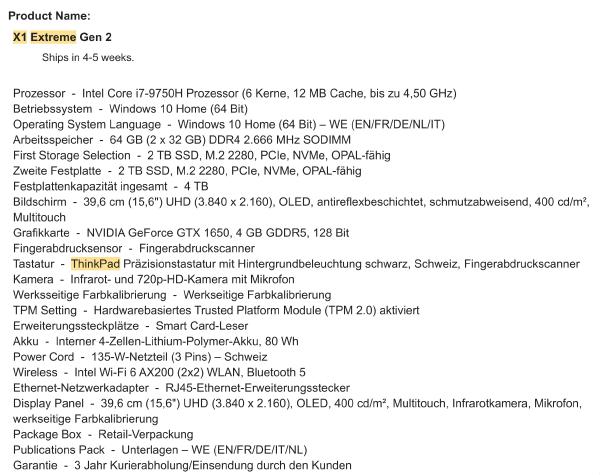

ThinkPad X1 Extreme Specs

The build quality seems very robust to me.

Another big plus of the ThinkPad series over other laptop series is the availability of the official Hardware Maintenance Manual: you can put “ThinkPad X1 Extreme Gen 2 Hardware Maintenance Manual” into Google and will find p1_gen2_x1extreme_hmm_v1.pdf as the first hit. This manual describes in detail how to repair or upgrade your device if you want to (or have to) do it yourself.

WiFi

The built-in Intel AX200 WiFi interface works fine, provided you have a new-enough linux-firmware package and kernel version installed.

I had trouble with Linux 5.6.0, and Linux 5.6.5 fixed it. Luckily, at the time of writing, Linux 5.11 is the most recent release, so most distributions should be recent enough for things to just work.

The WiFi card reaches almost the same download speed as the most modern WiFi device I can test: a MacBook Air M1. Both are connected to my UniFi UAP-AC-HD access point.

Laptop Download Upload
ThinkPad X1 Extreme 500 Mbit/s 150 Mbit/s
MacBook Air M1 600 Mbit/s 500 Mbit/s

I’m not sure why the upload speed is so low in comparison.

GPU

The GPU in this machine is by far the most troublesome bit of hardware.

I had hoped that after many years of laptops containing Intel/nVidia hybrid graphics, this setup would largely work, but was disappointed.

Both the proprietary nVidia driver and the nouveau driver would not work reliably for me. I ran into kernel error messages and hard-freezes, with even SSH sessions to the machine breaking.

In the end, I blacklisted the nouveau driver to use Intel graphics only:

% echo blacklist nouveau | sudo tee /etc/modprobe.d/blacklist.conf

Without the nVidia driver, the GPU will not go into powersave mode, so I remove it from the PCI bus entirely to save power:

#!/bin/zsh

sudo tee /sys/bus/pci/devices/0000\:01\:00.0/remove <<<1
sudo tee /sys/bus/pci/devices/0000\:01\:00.1/remove <<<1

You can only re-awaken the GPU with a reboot.

Obviously this isn’t a great setup — I would prefer to be able to actually use the GPU. If you have any tips or a better experience, please let me know.

Also note that the HDMI port will be unusable if you go this route, as the HDMI port is connected to the nVidia GPU only.

Battery life

The 80 Wh battery lasts between 5 to 6 hours for me, without any extra power saving tuning beyond what the Linux distribution Fedora 33 comes with by default.

This is good enough for using the laptop away from a power socket from time to time, which matches my expectation for this kind of mobile workstation.

Software support

Linux support is generally good on this machine! Yes, I provide a few pointers in this article regarding problems, patches and old software versions. But, if you use a newer Linux distribution, all of these fixes are included and things just work out of the box. I tested with Fedora 33.

For a few months, I was using this laptop exclusively with my research Linux distribution distri, so even if you just track upstream software closely, the machine works well.

Firmware updates

Lenovo partnered with the Linux Vendor Firmware Service Project (LVFS), which means that through fwupd, ThinkPad laptops such as this X1 Extreme can easily receive firmware updates!

This is a huge improvement in comparison to earlier ThinkPad models, where you had to jump through hoops with Windows-only software, or CD images that you needed to boot just right.

If your laptop has a very old firmware version (before 1.30), you might be affected by the skipping keystrokes issues. You can check using the always-handy lshw(1) tool.

Performance

The specific configuration of my ThinkPad is:

ThinkPad X1 Extreme Spec (2020)
CPU Intel Core i7-9750H CPU @ 2.60GHz
RAM 2 × 32 GB Samsung M471A4G43MB1-CTD
Disk 2 × SAMSUNG MZVLB2T0HALB-000L7 NVMe disk

You can google for CPU benchmarks and comparisons yourself, and those likely are more scientific and carefully done than I have time for.

What I can provide however, is a comparison of working on one of my projects on the ThinkPad vs. on my workstation, an Intel Core i9-9900K that I bought in 2018:

Workstation Spec (2018)
CPU Intel(R) Core(TM) i9-9900K CPU @ 3.60GHz
RAM 4 × Corsair CMK32GX4M2A2666C16
Disk Corsair Force MP600 M.2 NVMe disk

Specifically, I am comparing how long my manpage static archive generator debiman takes to analyze and render all manpages in Debian unstable, using the following command:

ulimit -n 8192; time ~/go/bin/debiman \
  -keyring=/usr/share/keyrings/debian-archive-keyring.gpg \
  -sync_codenames=, \
  -sync_suites=unstable \
  -serving_dir=/srv/man/benchmark \
  -inject_assets=~/go/src/github.com/Debian/debiman/debian-assets \
  -concurrency_render=20 \
  -alternatives_dir=~/go/src/github.com/Debian/debiman/piuparts

On both machines, I ensured that:

  1. The CPU performance governor was set to performance
  2. A warm apt-cacher-ng cache was present, i.e. network download was not part of the test.
  3. Linux kernel caches were dropped using echo 3 | sudo tee /proc/sys/vm/drop_caches
  4. I was using debiman git revision f78c160

Here are the results:

Machine Time
i9-9900K Workstation 4:57,10 (100%)
ThinkPad X1 Extreme (Gen 2) 7:19,56 (147%)

This reaffirms my impression that even high-end laptop hardware just cannot beat a workstation setup (which has more space and better thermals), but it comes close enough to be useful.

Conclusion

Positives:

  • The ergonomics of the device really are great. It is a pleasure to type on a first-class, full-size ThinkPad keyboard. The screen has good quality and a high resolution.

  • Performance-wise, this machine can almost replace a proper workstation.

Negatives are:

  • the mediocre battery life
  • an annoyingly loud fan that spins up too frequently
  • poor software/driver support for hybrid nVidia GPUs.

Notably, all of these could be improved by better power saving, so perhaps it’s just a matter of time until Linux kernel developers land some improvements…? :)
