Michael Stapelberg

How I configured and then promptly returned a MikroTik CCR2004 router for Fiber7

published 2021-05-28
in tag fiber
Edit Icon
Twitter icon
Table of contents

init7 recently announced that with their FTTH fiber offering Fiber7, they will now sell and connect you with 25 Gbit/s (Fiber7-X2) or 10 Gbit/s (Fiber7-X) fiber optics, if you want more than 1 Gbit/s.

This is possible thanks to the upgrade of their network infrastructure as part of their “lifecycle management”, meaning the old networking gear was declared as end-of-life. The new networking gear supports not only SFP+ modules (10 Gbit/s), but also SFP28 modules (25 Gbit/s).

Availability depends on the POP (Point Of Presence, German «Anschlusszentrale») you’re connected to. My POP is planned to be upgraded in September.

Nevertheless, I wanted to already prepare my end of the connection, and ordered the only router that init7 currently lists as compatible with Fiber7-X/X2: the MikroTik CCR2004-1G-12S+2XS.

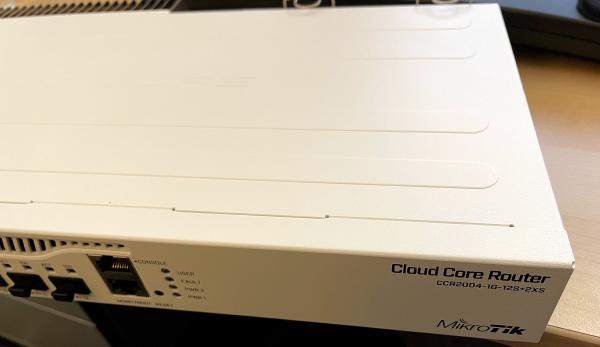

MikroTik CCR2004-1G-12S+2XS

The rest of this article walks through what I needed to configure (a lot, compared to Ubiquiti or OpenWRT) in the hope that it helps other MikroTik users, and then ends in Why I returned it.

Configuration

Connect an Ethernet cable to the management port on the MikroTik and:

  1. log into the system using ssh [email protected]
  2. point a web browser to “Webfig” at http://192.168.88.1/ (no login required)

Update firmware

Update the CCR2004 to the latest firmware version. At the time of writing, the Long-term RouterOS track is at version 6.47.9 for the CCR2004 (ARM64):

  1. Use /system package print to display the current version.
  2. Upload routeros-arm64-6.47.9.npk using Webfig.
  3. /system reboot and verify that /system package print shows 6.47.9 now.

Set up auth

Set a password to prevent others from logging into the router:

/user set admin password=secret

Additionally, you can enable passwordless SSH key login, if you want.

  1. Create an RSA key, because ed25519 keys are not supported:

    % ssh-keygen -t rsa
    Generating public/private rsa key pair.
    Enter file in which to save the key: /home/michael/.ssh/id_mikrotik

  2. Upload the id_mikrotik.pub file in Webfig

  3. Import the SSH public key for the admin user:

    /user ssh-keys import user=admin public-key-file=id_mikrotik.pub


Lock down the router

  1. Enable HTTPS in Webfig.

  2. Disable all remote access except for SSH and HTTPS:

    /ip service disable telnet,ftp,www,api,api-ssl,winbox

  3. Follow MikroTik Securing Your Router recommendations:

    /tool mac-server set allowed-interface-list=none
    /tool mac-server mac-winbox set allowed-interface-list=none
    /tool mac-server ping set enabled=no
    /tool bandwidth-server set enabled=no
    /ip ssh set strong-crypto=yes
    /ip neighbor discovery-settings set discover-interface-list=none


Enable DHCPv6 Client

For some reason, you need to explicitly enable IPv6 in 2021:

/system package enable ipv6
/system reboot

MikroTik says this is a precaution so that users don’t end up with default-open firewall settings for IPv6. But then why don’t they just add some default firewall rules?!

Anyway, to configure and immediately enable the DHCPv6 client, use:

/ipv6 dhcp-client add pool-name=fiber7 pool-prefix-length=64 interface=sfp28-1 add-default-route=yes use-peer-dns=no request=address,prefix

Modify the IPv6 DUID

Unfortunately, MikroTik does not offer any user interface to set the IPv6 DUID, which I need to configure to obtain my static IPv6 network prefix from my provider’s DHCPv6 server.

Luckily, the DUID is included in backup files, so we can edit it and restore from backup:

  1. Run /system backup save
  2. Download the backup file in Webfig by navigating to Files → Backup → Download.

  3. Convert the backup file to hex in textual form, edit the DUID and convert it back to binary:

    % xxd MikroTik-19700102-0111.backup MikroTik-19700102-0111.backup.hex

    % emacs MikroTik-19700102-0111.backup.hex
    # Search for “dhcp/duid” in the file and edit accordingly:
    # got:  00030001085531dfa69e

    % xxd -r MikroTik-19700102-0111.backup.hex MikroTik-19700102-0111-patched.backup

  4. Upload the file in Webfig, then restore the backup:

    /system backup load name=MikroTik-19700102-0111-patched.backup

Enable IPv6 Router Advertisements

To make the router assign an IPv6 address from the obtained pool for itself, and then send IPv6 Router Advertisements to the network, set:

/ipv6 address add address=::1 from-pool=fiber7 interface=bridge1
/ipv6 nd add interface=bridge1 managed-address-configuration=yes other-configuration=yes

Enable DHCPv4 Client

To configure and immediately enable the DHCPv4 client on the upstream port, use:

/ip dhcp-client add interface=sfp28-1 disabled=no

I also changed the MAC address to match my old router’s address, just to take maximum precaution to avoid any Port Security related issues with my provider’s DHCP server:

/interface ethernet set sfp28-1 mac-address=00:0d:fa:4c:0c:31

Enable DNS Server

By default, only the MikroTik itself can send DNS queries. Enable access for network clients:

/ip dns set allow-remote-requests=yes

Enable DHCPv4 Server

First, let’s bundle all SFP+ ports into a single bridge interface:

/interface bridge add name=bridge1
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus1 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus2 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus3 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus4 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus5 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus6 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus7 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus8 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus9 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus10 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus11 hw=yes
/interface bridge port add bridge=bridge1 interface=sfp-sfpplus12 hw=yes

This means we’ll use the device like a big switch with routing between the switch and the uplink port sfp28-1.

To configure the DHCPv4 Server, configure an IP address, then start the setup wizard:

/ip address add address=10.0.0.1/24 interface=bridge1
/ip dhcp-server setup
Select interface to run DHCP server on

dhcp server interface: bridge1
Select network for DHCP addresses

dhcp address space: 10.0.0.0/24
Select gateway for given network

gateway for dhcp network: 10.0.0.1
Select pool of ip addresses given out by DHCP server

addresses to give out: 10.0.0.2-10.0.0.240
Select DNS servers

dns servers: 10.0.0.1
Select lease time

lease time: 20m

Enable IPv4 NAT

We need NAT to route all IPv4 traffic over our single public IP address:

/ip firewall nat add action=masquerade chain=srcnat out-interface=sfp28-1 to-addresses=0.0.0.0

Disable NAT services for security, e.g. to mitigate against NAT slipstreaming attacks:

/ip firewall service-port disable ftp,tftp,irc,h323,sip,pptp,udplite,dccp,sctp

I can observe ≈10-20% CPU load when doing a Gigabit speed test over IPv4.

TODO list

The following features I did not get around to configuring, but they were on my list:

Why I returned it

Initially, I thought the device’s fan spins up only at boot, and then the large heatsink takes care of all cooling needs. Unfortunately, after an hour or so into my experiment, I noticed that the MikroTik would spin up the fan for a whole minute or so occasionally! Very annoying.

I also ran into weird DNS slow-downs, which I didn’t fully diagnose. In Wireshark, it looked like my machine sent 2 DNS queries but received only 1 DNS result, and then waited for a timeout.

I also noticed that I have a few more unexpected dependencies such as my home automation using DHCP lease state by subscribing to an MQTT topic. Addressing this issue and other similar little problems would have taken a bunch more time and would have resulted in a less reliable system than I have today.

Since I last used MikroTik in 2014 the software seems to have barely changed. I wish they finally implemented some table-stakes features like DNS resolution for DHCP hostnames.

Given all the above, I no longer felt like getting enough value for the money from the MikroTik, and found it easier to just switch back to my own router7 and return the MikroTik.

I will probably stick with the router7 software, but exchange the PC Engines APU with the smallest PC that has enough PCI-E bandwidth for a multi-port SFP28 network card.
